Dimensions of mushroom ventilator
Type | NAME | Nominal dia DN(mm) |
A | Inside on-off Hood ventilator | 150-350 |
B | Outer on-off obturation ventilator | 250-1200 |
C | Outer on-off obturation axial flow ventilator | 250-1200 |
D | Fixed ventilated canister | 200-1200 |
E | Inside on-off obturation ventilator | 150-350 |
F | Outer side on-off obturation ventilator | 150-900 |

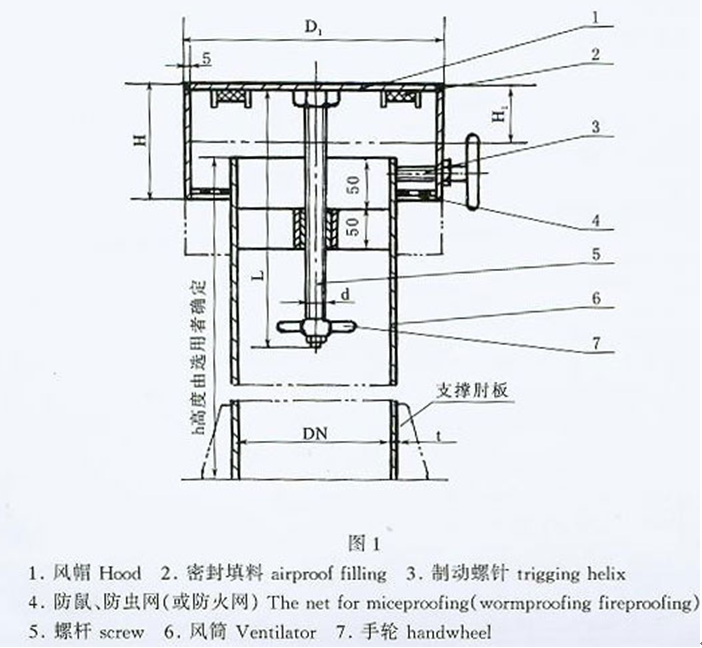

Internal opening and closing hood ventilation duct
Nominal dia DN | D1 | H | H1 | d | L | t | Weight kg |
150 | 250 | 100 | 40 | M22 | 250 | 8 | 11 |
200 | 320 | 110 | 50 | M24 | 9 | 12 | |
250 | 390 | 125 | 65 | 300 | 16 | ||
300 | 470 | 135 | 75 | 20 | |||
350 | 540 | 150 | 90 | M30 | 350 | 27 |

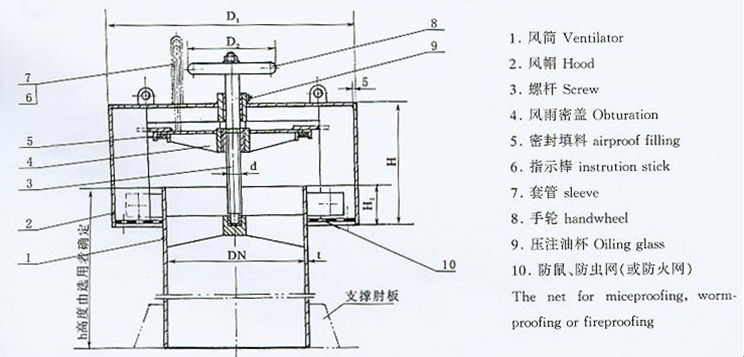

External opening and closing wind and rain cover ventilation duct
Nominal dia DN | D1 | D2 | H | H1 | d | t | Weight kg |
250 | 440 | 200 | 245 | 90 | Tr24×5—LH | 9 | 52 |
300 | 530 | 265 | 65 | ||||
350 | 620 | 310 | Tr30×6—LH | 81 | |||
400 | 710 | 280 | 345 | 105 | 10 | 98 | |
450 | 800 | 375 | 124 | ||||
500 | 890 | 320 | 405 | Tr40×7—LH | 148 | ||
550 | 980 | 435 | 167 | ||||
600 | 1050 | 470 | 120 | 171 | |||
650 | 1160 | 500 | 210 | ||||
700 | 1240 | 520 | 225 | ||||
750 | 1320 | 540 | 259 | ||||
800 | 1410 | 560 | 140 | 291 | |||
850 | 1500 | 580 | 322 | ||||
900 | 1580 | 360 | 600 | Tr46×8—LH | 357 | ||
950 | 1670 | 620 | 387 | ||||
1000 | 1760 | 640 | 420 | ||||
1100 | 1930 | 680 | 515 | ||||
1200 | 2100 | 720 | 585 |

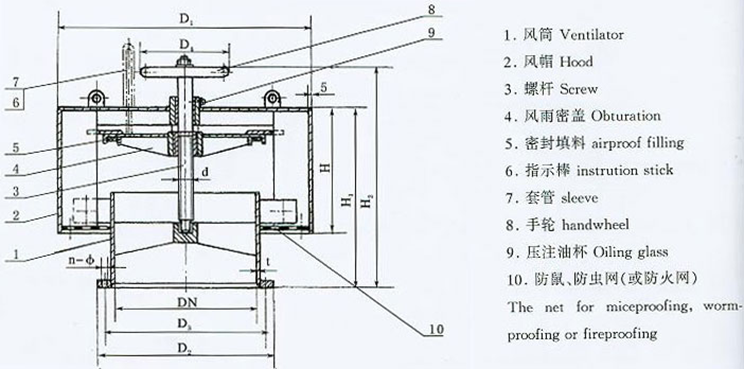

External opening and closing wind and rain cover, equipped with axial flow fan ventilation duct
Nominal dia DN | D1 | D4 | H | H1 | H2 | d | t | Flange Dimendions | Weight kg | ||
D2 | D3 | n-ф | |||||||||
250 | 440 | 200 | 245 | 365 | 447 | Tr24×5—LH | 6 | 314 | 290 | 8-ф10 | 62 |
300 | 530 | 265 | 385 | 467 | 375 | 345 | 8-ф12 | 77 | |||
350 | 620 | 310 | 430 | 512 | Tr30×6—LH | 425 | 395 | 96 | |||
400 | 710 | 280 | 345 | 470 | 566 | 475 | 445 | 12-ф12 | 118 | ||
450 | 800 | 375 | 500 | 596 | 8 | 525 | 495 | 12-ф12 | 147 | ||
500 | 890 | 320 | 405 | 530 | 639 | Tr40×7—LH | 595 | 560 | 12-ф15 | 179 | |
550 | 980 | 435 | 560 | 669 | 645 | 610 | 207 | ||||
600 | 1050 | 470 | 620 | 729 | 695 | 660 | 223 | ||||
650 | 1160 | 500 | 650 | 759 | 745 | 710 | 12-ф15 | 249 | |||
700 | 1240 | 520 | 670 | 779 | 795 | 760 | 16-ф15 | 274 | |||
750 | 1320 | 540 | 690 | 799 | 860 | 820 | 16-ф19 | 309 | |||
800 | 1410 | 560 | 740 | 849 | 910 | 870 | 359 | ||||
850 | 1500 | 580 | 760 | 869 | 960 | 920 | 408 | ||||
900 | 1580 | 360 | 600 | 780 | 900 | Tr46×8—LH | 1010 | 970 | 434 | ||
950 | 1670 | 620 | 800 | 920 | 1060 | 1020 | 16-ф19 | 453 | |||
1000 | 1760 | 640 | 820 | 940 | 1110 | 1070 | 20-ф19 | 530 | |||
1100 | 1930 | 680 | 860 | 980 | 1210 | 1170 | 601 | ||||
1200 | 2100 | 720 | 900 | 1020 | 1330 | 1280 | 20-ф24 | 689 | |||

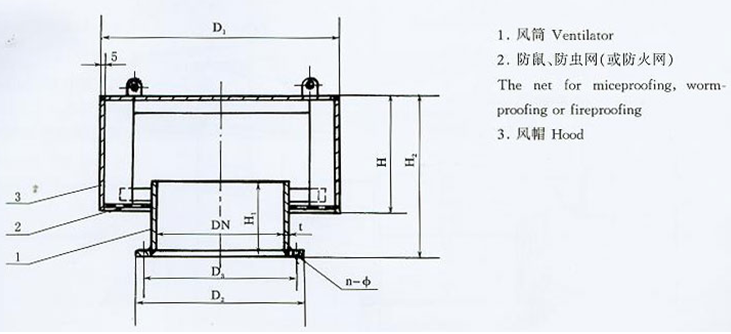

Dimensional drawing of fixed ventilation duct (mushroom head)
Nominal dia DN | D1 | H | H1 | H2 | t | Flange Dimendions | Weight kg | ||
D2 | D3 | n-ф | |||||||
350 | 620 | 310 | 410 | 440 | 410 | 8-ф12 | 65 | ||

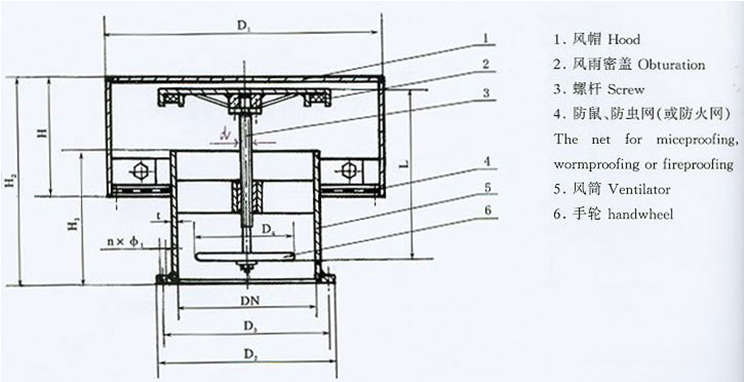

Nominal dia DN | D1 | D4 | H | H1 | H2 | d | L | t | Flange Dimendions | Lift mm | ||
D2 | D3 | n-ф | ||||||||||
150 | 270 | 100 | 155 | 195 | 275 | Tr20×4 | 235 | 6 | 214 | 190 | 8-ф10 | 55 |
200 | 360 | 140 | 175 | 195 | 295 | 250 | 264 | 240 | 75 | |||
250 | 440 | 160 | 205 | 210 | 325 | Tr24×5 | 280 | 314 | 290 | 90 | ||
300 | 530 | 160 | 225 | 210 | 345 | 300 | 375 | 345 | 8-ф12 | 110 | ||
350 | 620 | 200 | 250 | 210 | 370 | Tr30×6 | 330 | 425 | 395 | 135 | ||

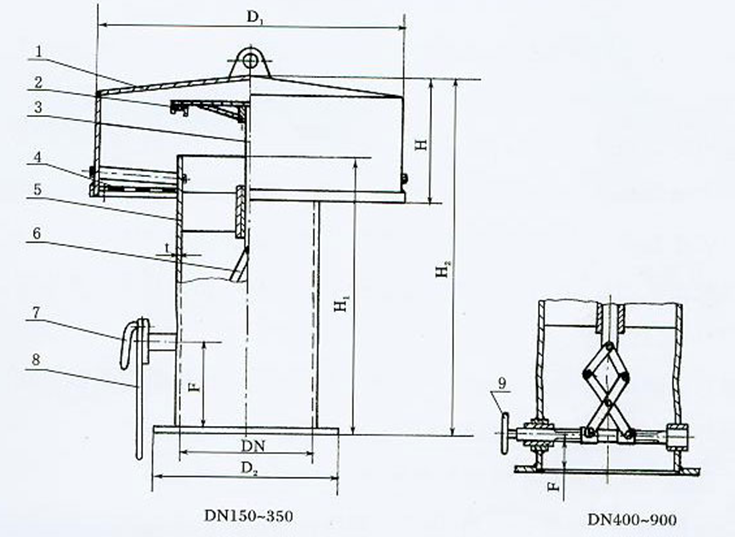

External side opening and closing wind and rain cover ventilation duct
Nominal dia DN | D1 | D2 | H | H1 | H2 | F | t | Weight kg |
150 | 360 | 260 | 200 | 600 | 700 | 170 | 6 | 40 |
200 | 460 | 310 | 210 | 600 | 710 | 170 | 6 | 45 |
250 | 530 | 360 | 240 | 600 | 740 | 170 | 6 | 50 |
300 | 640 | 410 | 270 | 600 | 770 | 170 | 6 | 60 |
350 | 760 | 460 | 305 | 700 | 905 | 220 | 6 | 70 |
400 | 850 | 510 | 360 | 700 | 960 | 220 | 8 | 80 |
500 | 980 | 615 | 420 | 1000 | 1320 | 220 | 8 | 180 |
600 | 1100 | 715 | 480 | 1000 | 1380 | 220 | 8 | 275 |
700 | 1280 | 815 | 640 | 1250 | 1790 | 220 | 8 | 350 |
750 | 1350 | 865 | 680 | 1250 | 1830 | 220 | 8 | 375 |
800 | 1440 | 915 | 710 | 1250 | 1860 | 220 | 8 | 400 |
900 | 1670 | 1015 | 830 | 1250 | 1980 | 220 | 8 | 465 |
